Type FLS Beam Flange Clamp
An easy to install beam flange clamp with swivel unit for suspending building services from structural or secondary beams.
Overview

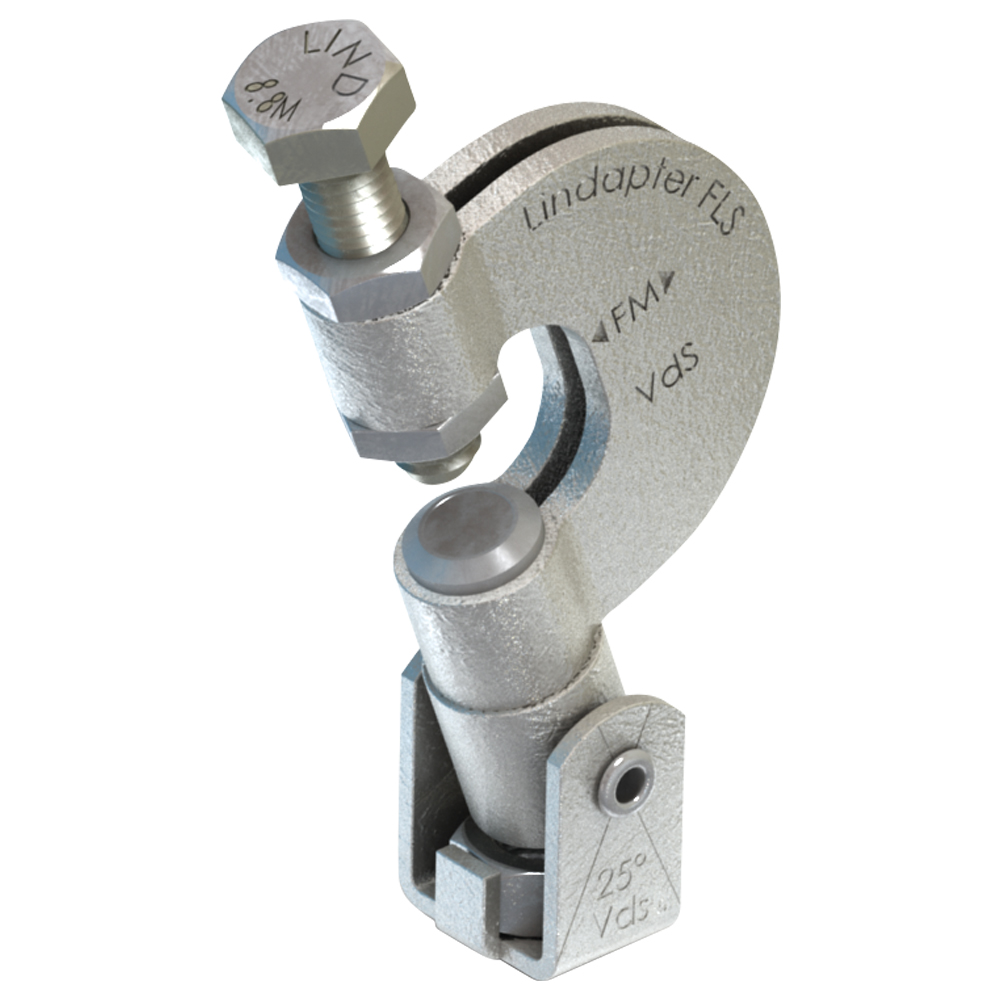

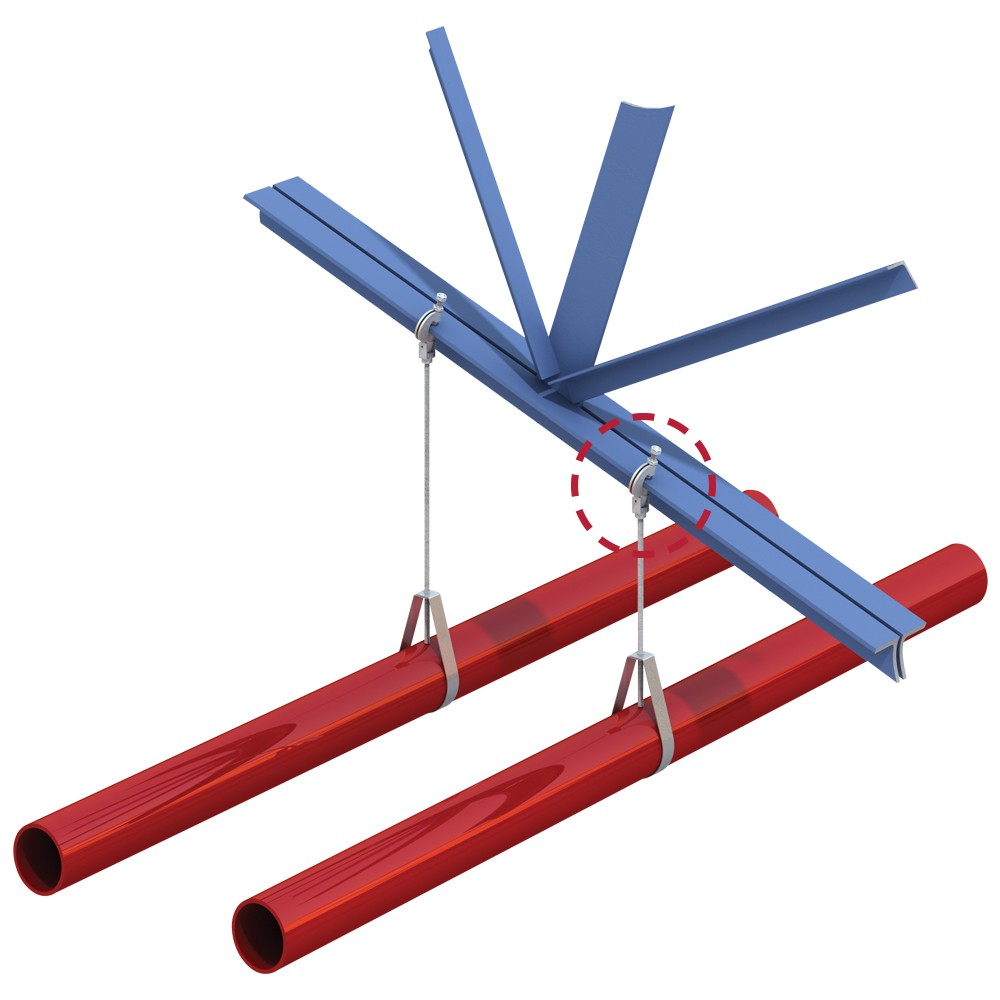

The Type FLS is a versatile beam flange clamp with a swivel unit for inclined applications. Supplied with a high tensile setscrew for a secure grip on both parallel and tapered flanges. Suitable for moderate loading applications. Manufactured from high grade alloy steel with a zinc plated finish to provide high performance and anti-corrosion protection.
Features & Benefits
- NEW: Independently fire tested in accordance with ASTM E-119 for a duration of 120 minutes. For fire test results and load limits please contact Lindapter.
- Swivel unit for inclined applications.
- Suitable for parallel and tapered flanges.
Approvals
Click on an approval logo to download the certificate or report.
Properties
- Manufactured from high grade alloy steel.
- Supplied with zinc plated finish.
Technical Specification
| Safe Working Load (FOS 4:1) | Tightening Torque | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Rod Y | Tensile 0o to 25o | Tensile 25o to 45o | Clamping Range W | Setscrew Z | Setscrew Z | Locknut N | R | T | U | X | Width |
| kN | kN | mm | Nm | Nm | mm | mm | mm | mm | mm | |||
| LFLS037 | 3⁄8” UNC | 2.5 | 1.5 | 3 - 17 | M10 | 18 | 18 | 55 | 53 | 58 | 27 | 28 |
| Safe Working Load (FOS 4:1) | Tightening Torque | Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Rod Y | Tensile 0o to 25o | Tensile 25o to 45o | Clamping Range W | Setscrew* Z | Setscrew Z | Locknut N | R | T | U | X | Width |
| lbs | lbs | ft lb | ft lb | |||||||||
| LFLS037 | 3⁄8” UNC | 550 | 330 | 1⁄8” - 11⁄16” | M10 (3⁄8”) | 13 | 13 | 23⁄16” | 21⁄8” | 21⁄4” | 11⁄16” | 11⁄8” |
* Metric setscrew supplied.
