Type LC Beam Flange Clamp

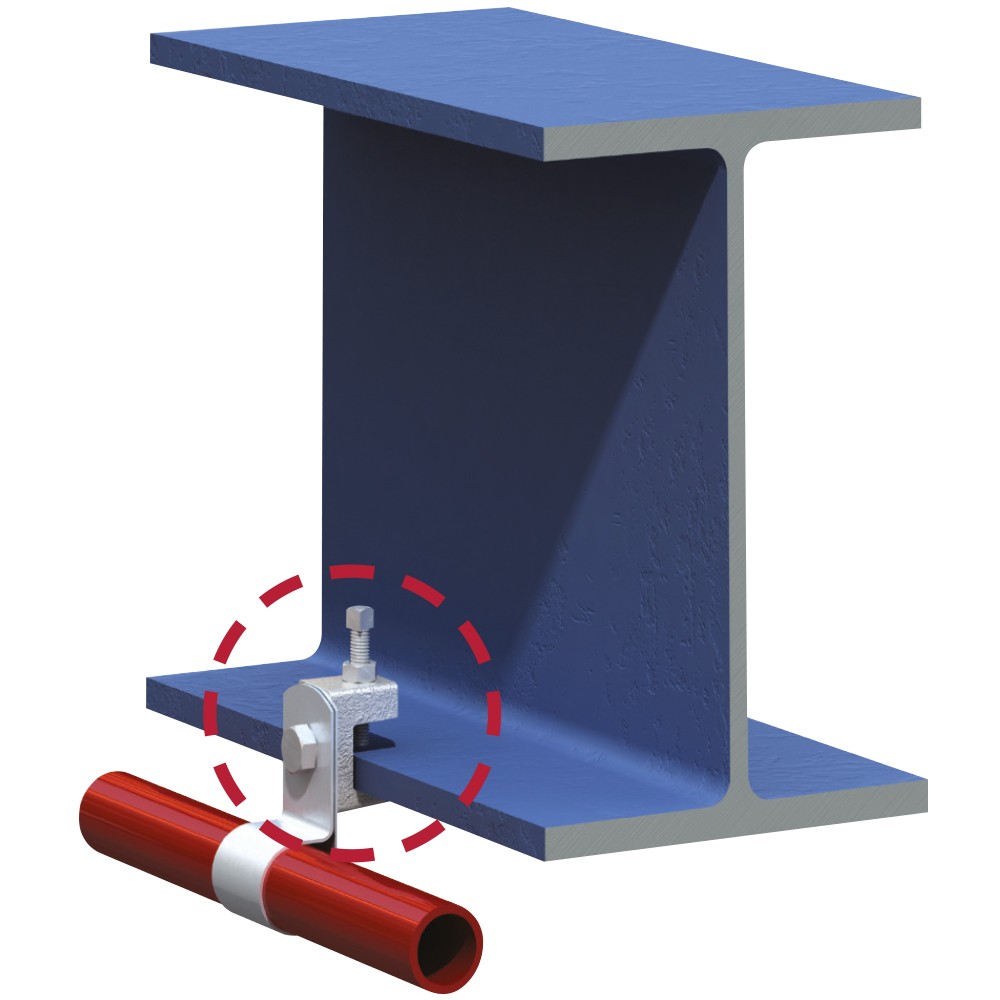

An easy to install, light duty, beam flange clamp for suspending building services from structural or secondary beams.
Overview

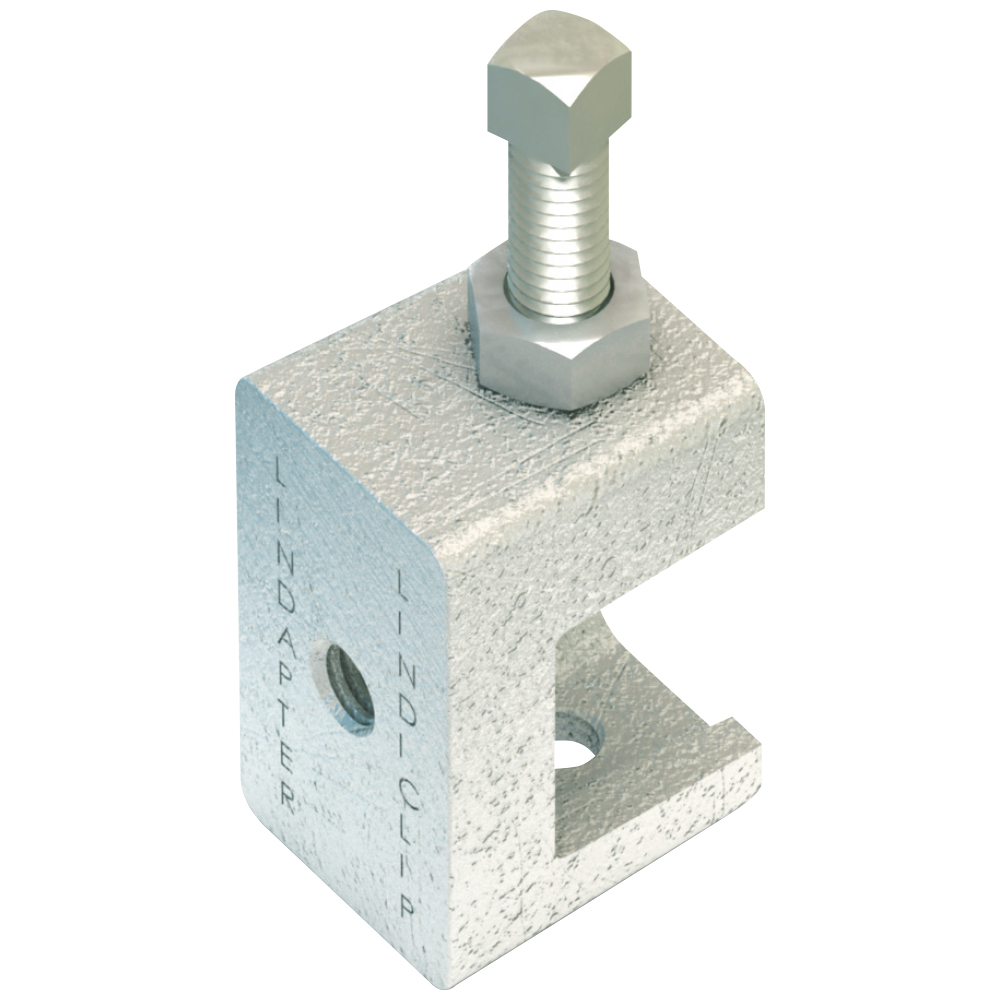

The Type LC LindiClip™ is a light duty clamp for parallel or tapered flanges with tapped holes to accept threaded rod or cable clips. Supplied with a high tensile cup point setscrew. Suitable for applications with low loadings. Manufactured from malleable iron with zinc plated finish to provide high performance and anti-corrosion protection.
Features & Benefits
- Simple cost effective solution.
- Suitable for parallel and tapered flanges.
- Light duty applications.
Approvals
Click on an approval logo to download the certificate or report.
Properties
- Manufactured from malleable iron to BS EN 1562.
- Supplied with zinc plated finish.

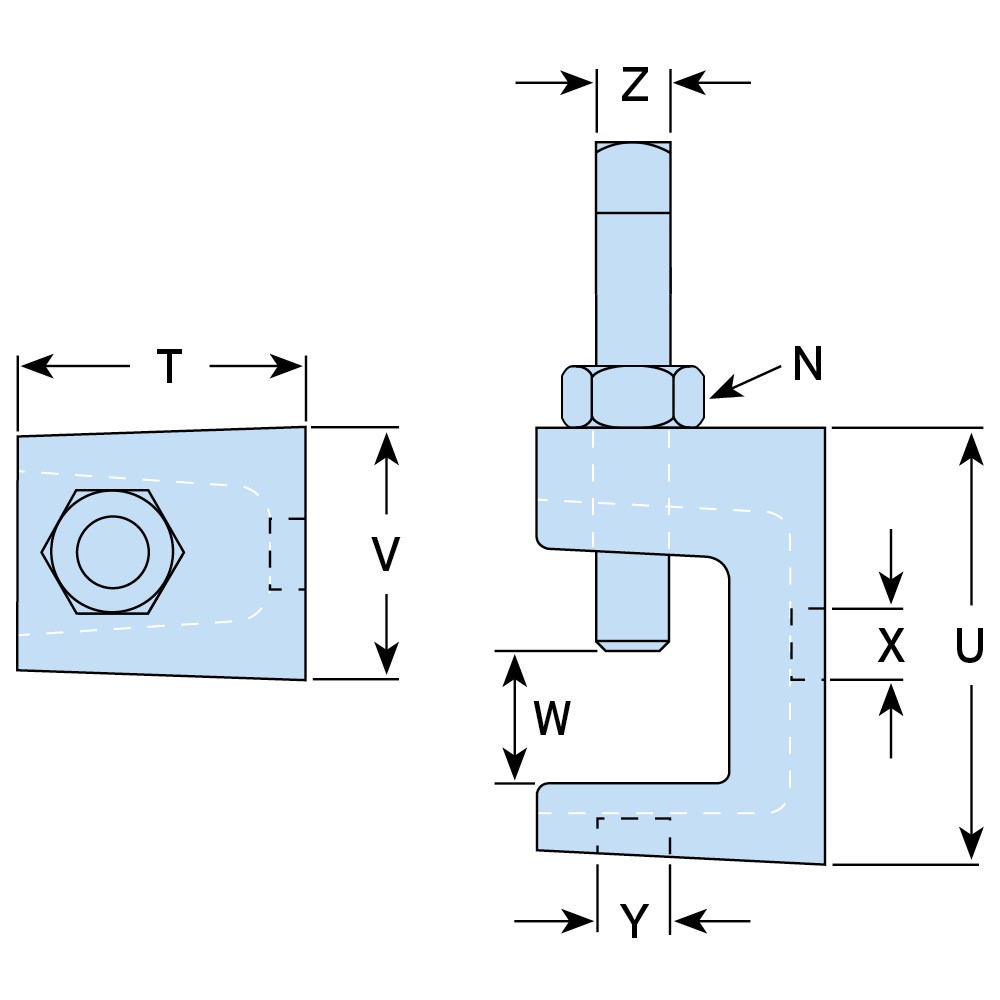

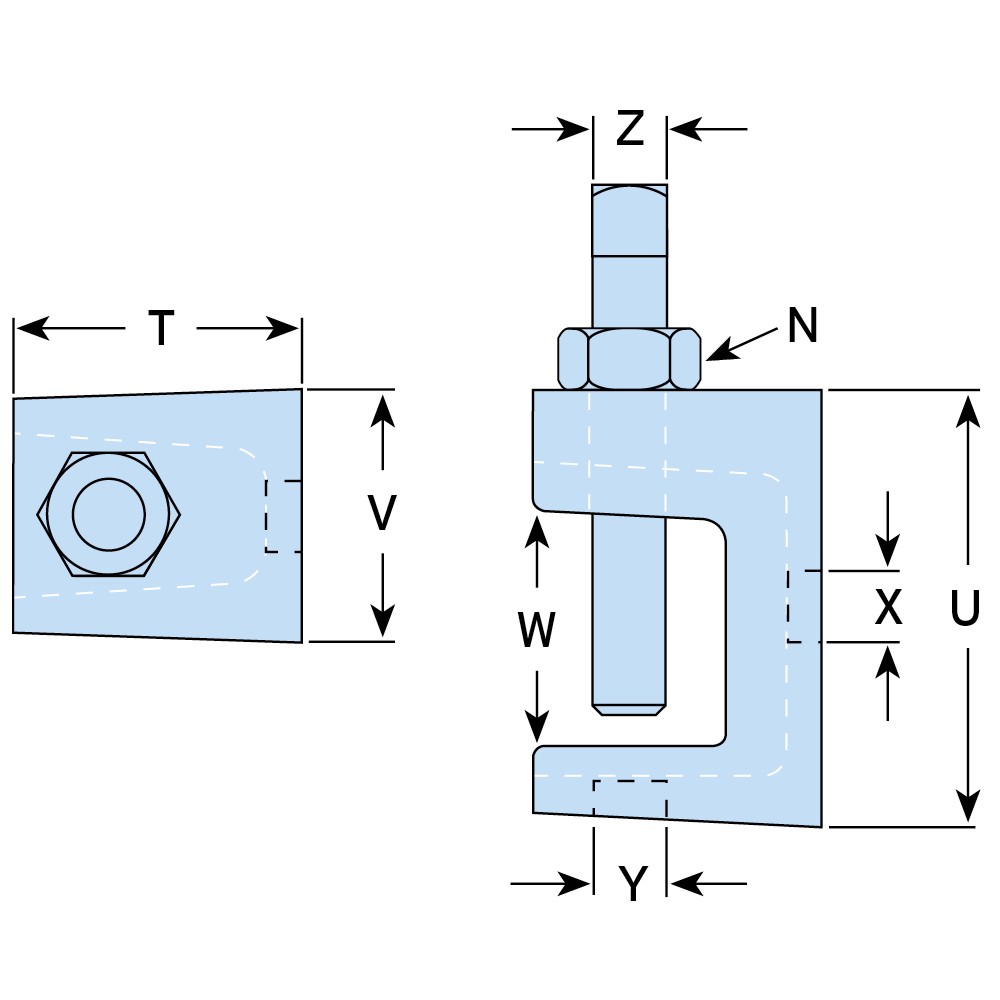

Technical Specification
| Tapped Thread | Safe Working Load (FOS 4:1) | Tightening Torque | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | X | Y | Tensile in Position | Tensile in Position | Clamping Range | Setscrew | Setscrew | Locknut | T | U | Width |
| X | Y | W | Z | Z | N | V | |||||
| kN | kN | mm | Nm | Nm | mm | mm | mm | ||||
| LLC025 | 1⁄4" UNC | 1⁄4" UNC | 0.18 | 0.59 | 3 - 20 | M6 | 4 | 4 | 25 | 36 | 21 |
| Tapped Thread | Safe Working Load (FOS 4:1) | Tightening Torque | Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Tensile in Position | Tensile in Position | Clamping Range | Setscrew* | Setscrew | Locknut | Width | ||||
| X | Y | X | Y | W | Z | Z | N | T | U | V | |
| lbs | lbs | ft lb | ft lb | ||||||||
| LLC025 | 1⁄4" UNC | 1⁄4" UNC | 40 | 135 | 1⁄8" - 11⁄16" | M6 (1⁄4") | 3 | 3 | 1" | 17⁄16" | 7⁄8" |
* Metric setscrew supplied.
