Type FL Beam Flange Clamp

An easy to install beam flange clamp, with moderate loading capacity, for suspending building services from structural or secondary beams.

View technical specification

Overview

Fire tested, FM and VdS approved standard flange clamp for applications with moderate loadings. The Type FL uses a grade 8.8 cup point setscrew for a secure grip on both parallel and tapered flanges. Supplied with the back hole drilled or tapped and a hexagon head metric setscrew. Manufactured from malleable iron with zinc plated finish. Can be used with Type SW (Swivel Unit) when connecting to inclined sections.

NEW: Independently fire tested in accordance with ASTM E-119 for a duration of 120 minutes. For fire-resistance rating load limits please click here to download the flyer.

Features & Benefits

  • NEW: Independently fire tested in accordance with ASTM E-119.
  • Simple cost effective solution.
  • Suitable for parallel and tapered flanges.

Approvals

Click on an approval logo to download the certificate or report.

Properties

  • Manufactured from malleable iron to BS EN 1562.
  • Supplied with zinc plated finish.

Technical Specification

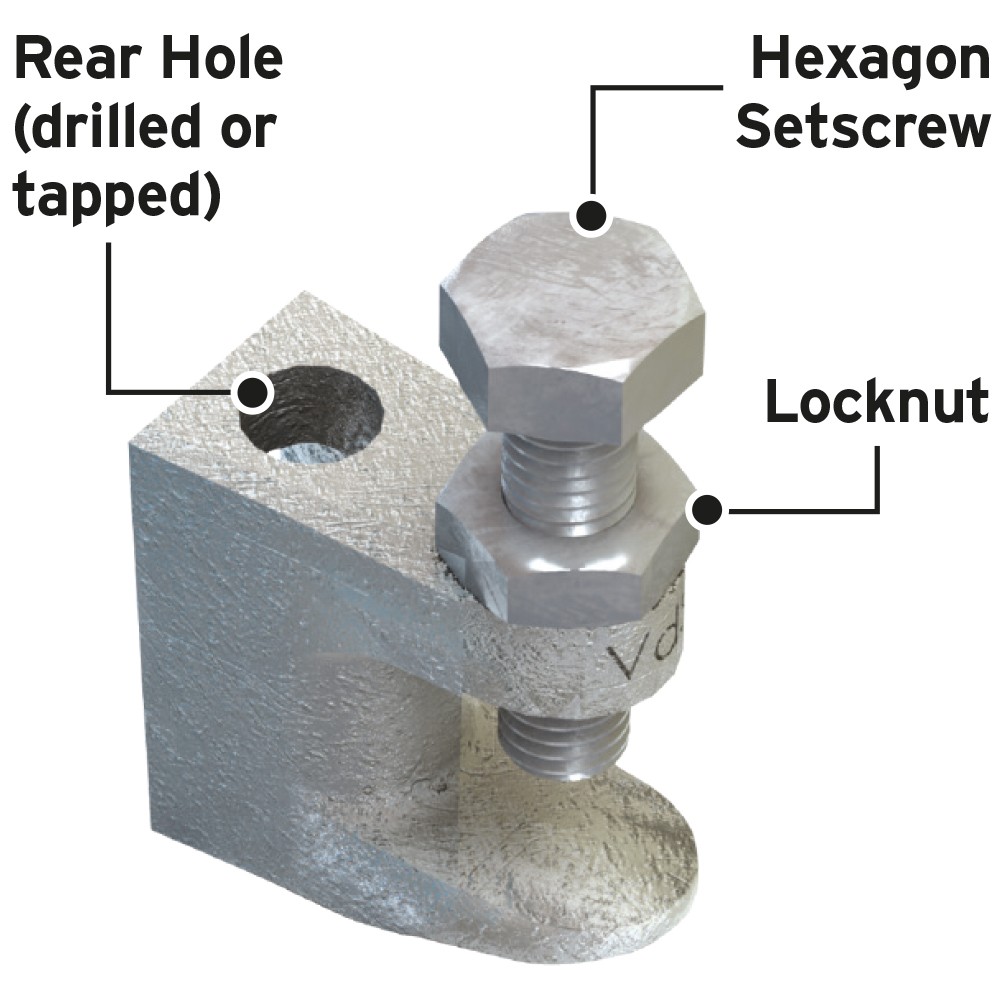

Click to view labelled diagram

Product Code Safe Working Loads (FOS 4:1) Tightening Torque Dimensions
Drilled Hole Tapped Hole Drilled Hole Ø Tapped Thread Tensile Clamping Range Setscrew Setscrew Locknut T U X Width V
Y Y W Z Z N
mm kN mm Nm Nm mm mm mm mm
LFL037C* LFL037T 11 M10 2.4 3 - 20 M10 8 22 45 40 22 22
LFL050C LFL050T 13 M12 3.1 3 - 24 M10 8 22 50 46 28 25

* Also available in stainless steel.

Product Code Safe Working Load (FOS 4:1) Tightening Torque Dimensions
Drilled Hole Tapped Hole Ø Drilled Hole Tapped Thread Tensile Clamping Range Setscrew1) Setscrew Locknut T U X Width V
Y Y W Z Z N
lbs ft lb ft lb
LFL037C* LFL037T 716" 38" UNC 540 18" - 2532" M10 (38") 6 16 134" 1916" 78" 78"
LFL050C LFL050T 12" 12" UNC 700 18" - 1516" M10 (38") 6 16 2" 11316" 118" 1"

* Also available in stainless steel.

1) Metric setscrew supplied.
