Application: PS32-AB

Product Type: A & B

Product Material: Malleable Iron (Zinc Plated or Hot Dip Galvanized)

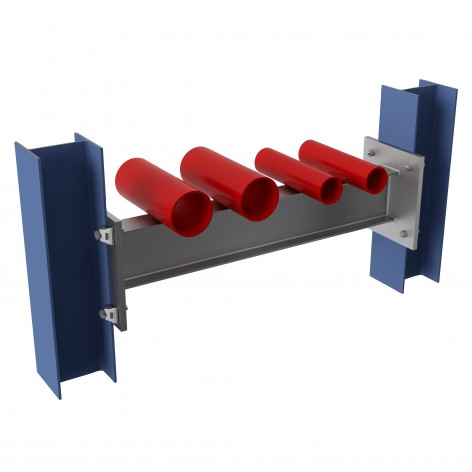

Pipe support beam to columns

Supporting Section: Column
Supported Section: Pipe
Connection Components: 2 End plates, 8 clamps and 8 bolts, nuts & washers



Safe Working Loads

Clamp Size Tension Capacity Slip Capacity
1/2" 5216 lbs 404 lbs
5/8" 7644 lbs 764 lbs
3/4" 13220 lbs 1348 lbs
1" 17720 lbs 2024 lbs

Send a design request to our technical support team

  • Product Category: Girder Clamps | Lindapter - Versatile Connection Solutions
  • Connection Type: Pipe support beam to columns
  • Clamp Type: Type A & B

If you have any files that complement your technical request please attach them.

Faster to Install

No drilling or welding!

Independently Approved

Reasons to choose Lindapter

  • Save time and money

    Save time and money

    Clamping two steel sections together avoids time-consuming welding or conventional drilling and bolting.

  • Safer connections

    Safer connections

    Drilling and welding in the field is avoided, removing the need for hot work permits and encouraging safer site conditions.

  • High strength

    High strength

    Lindapter clamps are manufactured from high strength materials to resist high load requirements and harsh environments.

  • Industry leading approvals

    Industry leading approvals

    Lindapter has earned a reputation synonymous with safety and reliability, gaining multiple independent approvals.

  • Adjustable

    Adjustable

    Quickly align steel sections by sliding the section into the correct position before tightening the Girder Clamp to complete the installation.

  • Free connection detailing

    Free connection detailing

    Lindapter’s experienced Engineers can detail a custom connection based on your specific requirements free of charge.
