Application: GC07-AB
Product Type: A & B
Product Material: Malleable Iron (Zinc Plated or Hot Dip Galvanized)

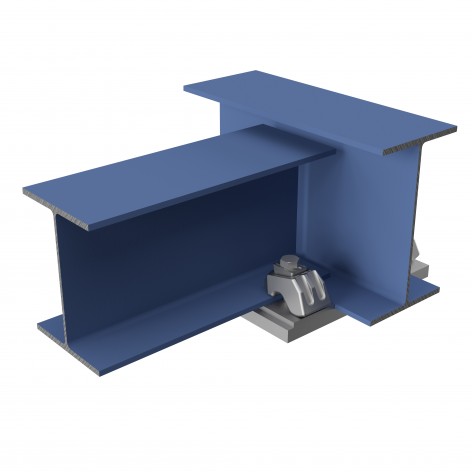

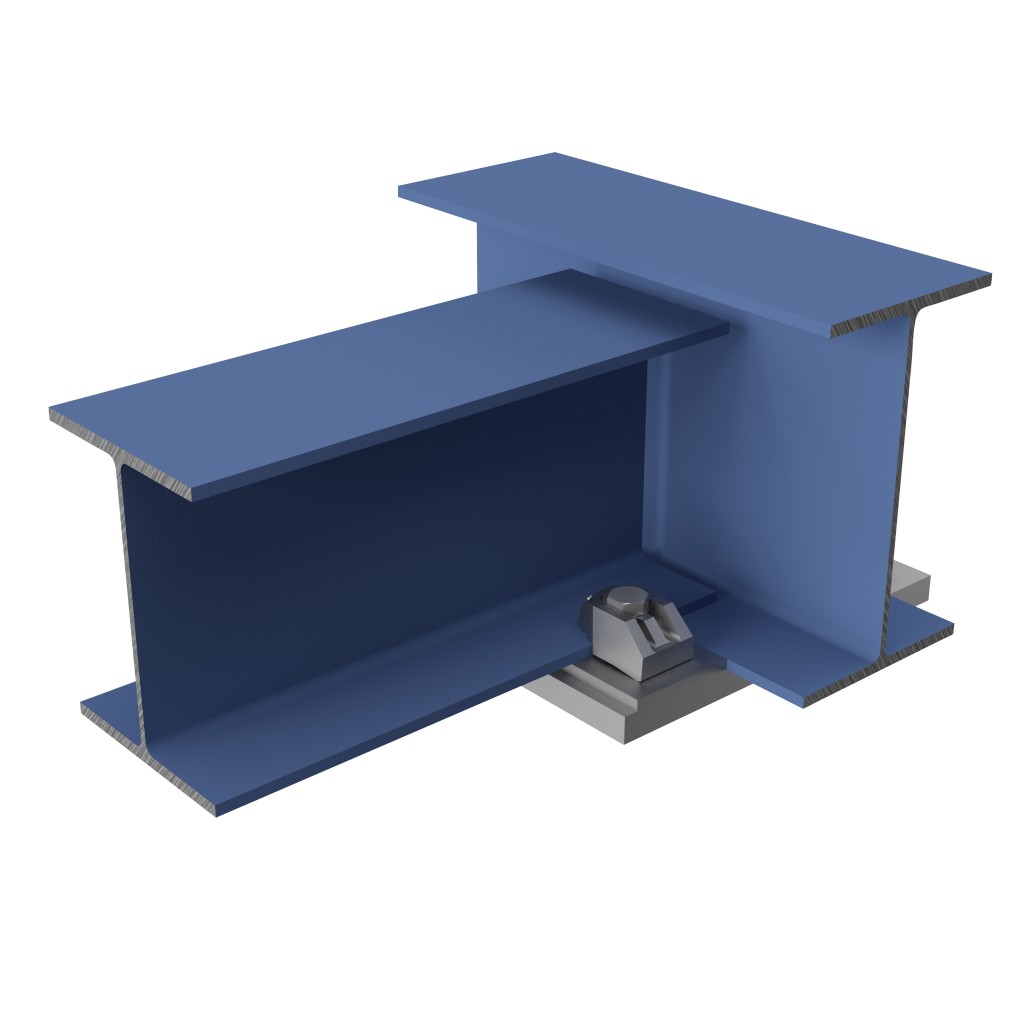

One beam sat on beam flange crossing at 90°
Supporting Section: Beam
Supported Section: Beam
Connection Components: End plate, spacer plate, 4 clamps and 4 bolts, nuts & washers
Safe Working Loads
| Clamp Size | Tension Capacity |
|---|---|
| 1/2" | 2608 lbs |
| 5/8" | 3822 lbs |
| 3/4" | 6610 lbs |
| 1" | 8860 lbs |
Send a design request to our technical support team
- Product Category: Girder Clamps | Lindapter - Versatile Connection Solutions
- Connection Type: One beam sat on beam flange crossing at 90°
- Clamp Type: Type A & B
How can we
help you?
Reasons to choose Lindapter
-
Save time and money
Clamping two steel sections together avoids time-consuming welding or conventional drilling and bolting.
-
Safer connections
Drilling and welding in the field is avoided, removing the need for hot work permits and encouraging safer site conditions.
-
High strength
Lindapter clamps are manufactured from high strength materials to resist high load requirements and harsh environments.
-
Industry leading approvals
Lindapter has earned a reputation synonymous with safety and reliability, gaining multiple independent approvals.
-
Adjustable
Quickly align steel sections by sliding the section into the correct position before tightening the Girder Clamp to complete the installation.
-
Free connection detailing
Lindapter’s experienced Engineers can detail a custom connection based on your specific requirements free of charge.
