Type TC Toggle Clamp

An easy to install toggle clamp for suspending building services from pre-cast hollow core slabs.

View technical specification

Overview

The Type TC is a quick and easy to install toggle clamp designed for service suspension from pre-cast hollow core slabs (minimum core depth 3”). FM approved for applications with moderate loadings. Manufactured from zinc plated steel strip.

Features & Benefits

  • Simple cost effective solution.
  • Quick and easy to install.
  • Safe Working Loads subject to the strength of the supporting section.

Approvals

Click on an approval logo to download the certificate or report.

Properties

  • Manufactured from steel strip.
  • Supplied with zinc plated finish.

Technical Specification

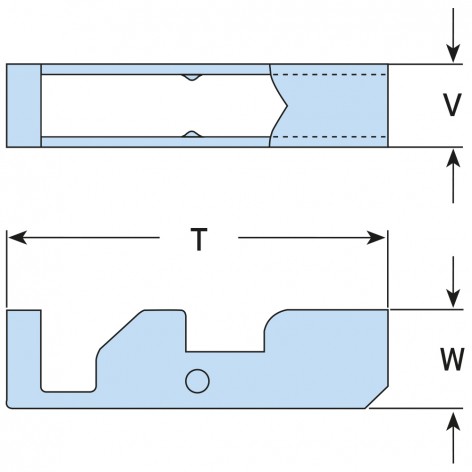

Click to view labelled diagram

Safe Working Load (FOS 4:1) Dimensions
Product Code Drop Rod Hole Ø Tensile / 1 Rod Tightening Torque T W Width V
mm kN Nm mm mm mm
LTC037 38" UNC 25 2.45 10 68 17.5 15

Safe Working Loads subject to the strength of the supporting section.

Safe Working Load (FOS 4:1) Dimensions
Product Code Drop Rod Hole Ø Tensile / 1 Rod Tightening Torque T W Width V
lbs ft lb
LTC037 38" UNC 1" 550 7 21116" 1116" 916"

Safe Working Loads subject to the strength of the supporting section.
