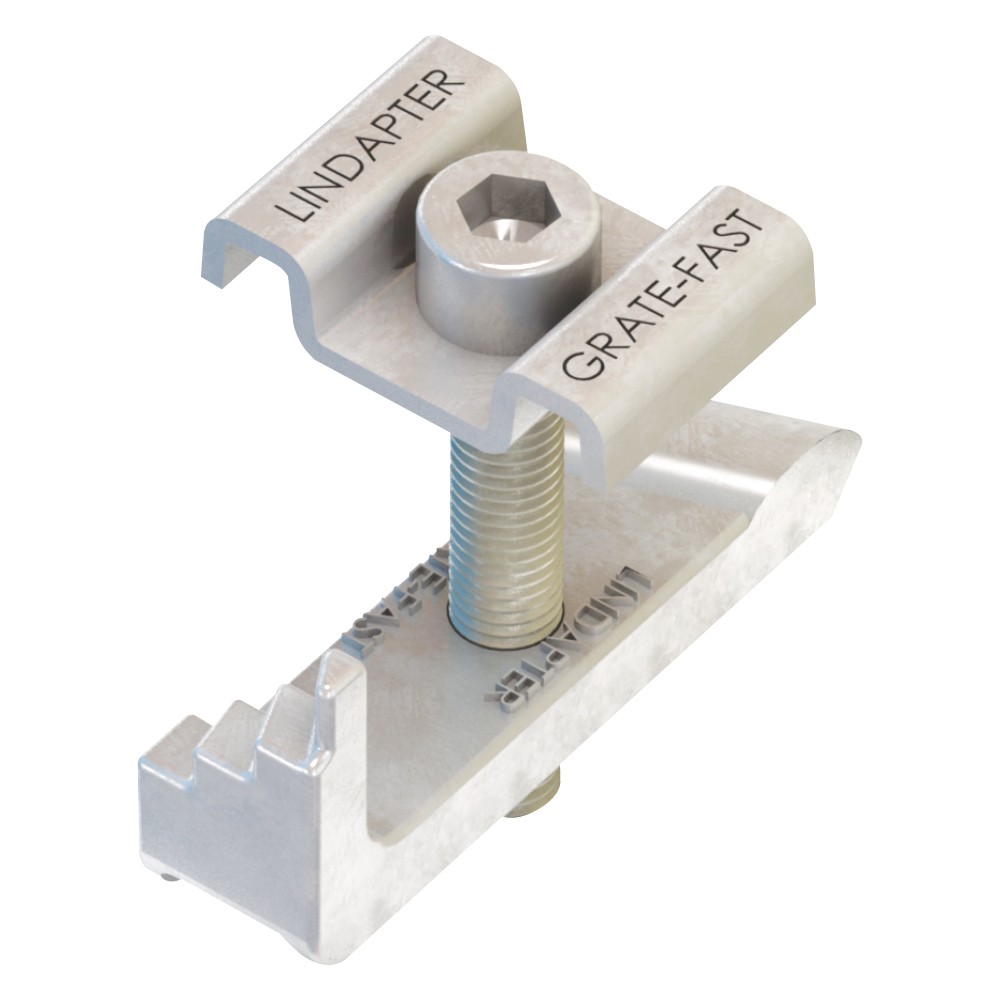

Type GF Grate-Fast™

A high strength floor connector for securing rectangular open bar grating to the supporting steel without the need for drilling or welding in the field.

View technical specification

Overview

The Type GF Grate-Fast connector eliminates the need for costly scaffolding or elevated floors as access to the underside of the flooring is not required. Installation is carried out quickly and safely from above, often by one person, significantly reducing costs. The malleable iron cast body along with the unique stepped clamping face, which locks under the steel, provides outstanding clamping force and a secure connection.

Product Selector

• LGF025-11W for 11-W or 11-P series of close mesh bar grating.

• LGF031 for GRP grating with stainless steel top hat bracket, Sheraplex coated body and socket head screw.

• LGF037 (OSB) is hot dip galvanized for increased corrosion resistance.

• LGF037 is hot dip galvanized for use with 1316" width floor grating bars only.

Features & Benefits

  • Superior clamping force from the cast body.
  • Lloyd’s Register Type Approval for resistance to shock and vibration.
  • Pre-assembled fixing for quick and easy installation.
  • Designed for pedestrian walkways only.
  • Not suitable for tapered flanges.

Approvals

Click on an approval logo to download the certificate or report.

Properties

  • Material:

    • Top Hat:
        ◦ Stainless steel grade 304 (LGF031 only).
        ◦ Mild Steel, hot dip galvanized (LGF025-11W, LGF037 (OSB) and LGF037 only).
    • Body:
        ◦ Malleable iron, Sheraplex (LGF031 only).
        ◦ Malleable iron, hot dip galvanized (LGF025-11W, LGF037 (OSB) and LGF037 only).

  • Reaction to fire: A1 (Steel)

Durability and corrosion protection:

Corrosivity Class Galvanized Steel Electroplated Steel
C1 More than 50 years More than 20 years
C2 More than 50 years More than 5 years
C3 More than 20 years Not suitable

For C4 and C5 corrosion categories contact us.

Technical Specification

Click to view labelled diagram

Product Code Bolt 8.8 Flange Grating Bar Depth Grating Bar Width Bar Distance Tightening Torque Across Flats
Z T D W X
mm mm mm mm Nm mm
LGF0311) M8 3 - 19 22 - 38 5 - 10 19 - 48 5 6
LGF037 (OSB)2) M10 3 - 19 20 - 50 3 - 7 25 - 45 11 10
LGF0371) M10 3 - 19 19 -40 3 - 6.5 30 11 8

1) Supplied with socket head cap screw.

2) Supplied with hex head screw.

  For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.014

Product Code Bolt Flange Grating Bar Depth Grating Bar Width Bar Distance Tightening Torque Hexagon Key / Socket
Z T D W X
ft lb mm
LGF025-11W M6 (14") 14" - 34" 1" - 2" 18" - 316" 1116" 3 5 (316")
LGF0311) M8 (516") 18" - 34" 78" - 112" 316" - 38" 34" - 178" 4 6 (732")
LGF037 (OSB)2) M10 (38") 18" - 34" 1316" - 2" 18" - 14" 1" - 134" 8 10 (38")
LGF0371) M10 (38") 18" - 34" 34" - 1916" 18" - 14" 1316" 8 8 (516")

1) Supplied with socket head cap screw.

2) Supplied with hex head screw.
