Type WF Purlin Clip

Quick to install purlin clip which fits directly to the web of steel zed purlins from where building services can then be suspended.

View technical specification

Overview

The Type WF Webfix is a purlin clip that allows a quick installation directly from the web of steel zed purlins. This simple but versatile clip can be fixed to purlins that are canted or inclined.

Features & Benefits

  • Suitable for canted or inclined purlins.
  • Simple cost effective solution.
  • Quick and easy to install.

Approvals

Click on an approval logo to download the certificate or report.

Properties

  • Manufactured from mild steel with zinc plated finish.

Technical Specification

Click to view labelled diagram

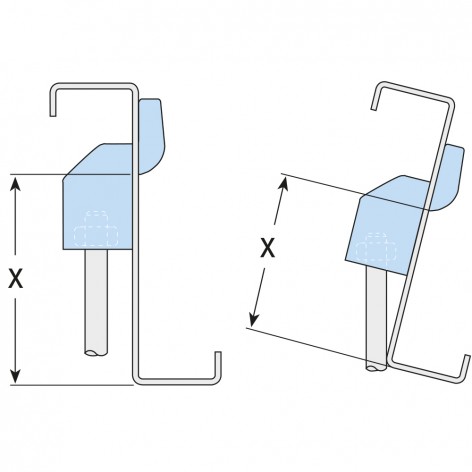

Safe Working Load (FOS 5:1) Maximum Distance X at Angle of
Product Code Rod Tensile Maximum Purlin Thickness Hole Ø 10° 20° 30°
kN mm mm mm mm mm
WF10 M10 1.0 4 18 103 94 74

Faster to Install

No drilling or welding!

Independently Approved

Reasons to choose Lindapter

  • Save time and money

    Save time and money

    Clamping two steel sections together avoids time-consuming welding or conventional drilling and bolting.

  • Safer connections

    Safer connections

    On-site drilling and welding is avoided, removing the need for hot work permits and encouraging safer site conditions.

  • High strength

    High strength

    Lindapter clamps are manufactured from high strength materials to resist high load requirements and harsh environments.

  • Industry leading approvals

    Industry leading approvals

    Lindapter has earned a reputation synonymous with safety and reliability, gaining multiple independent approvals.

  • Adjustable

    Adjustable

    Quickly align steel sections by sliding the section into the correct position before tightening the Girder Clamp to complete the installation.

  • Free connection design

    Free connection design

    Lindapter’s experienced Engineers can design a bespoke connection based on your specific requirements free of charge.
