Type RC Girder Clamp
Special girder clamp with customised hole centre. Used to connect steel beams with flat or tapered flanges of 10mm thickness or greater and to resist low tensile loading.
Overview

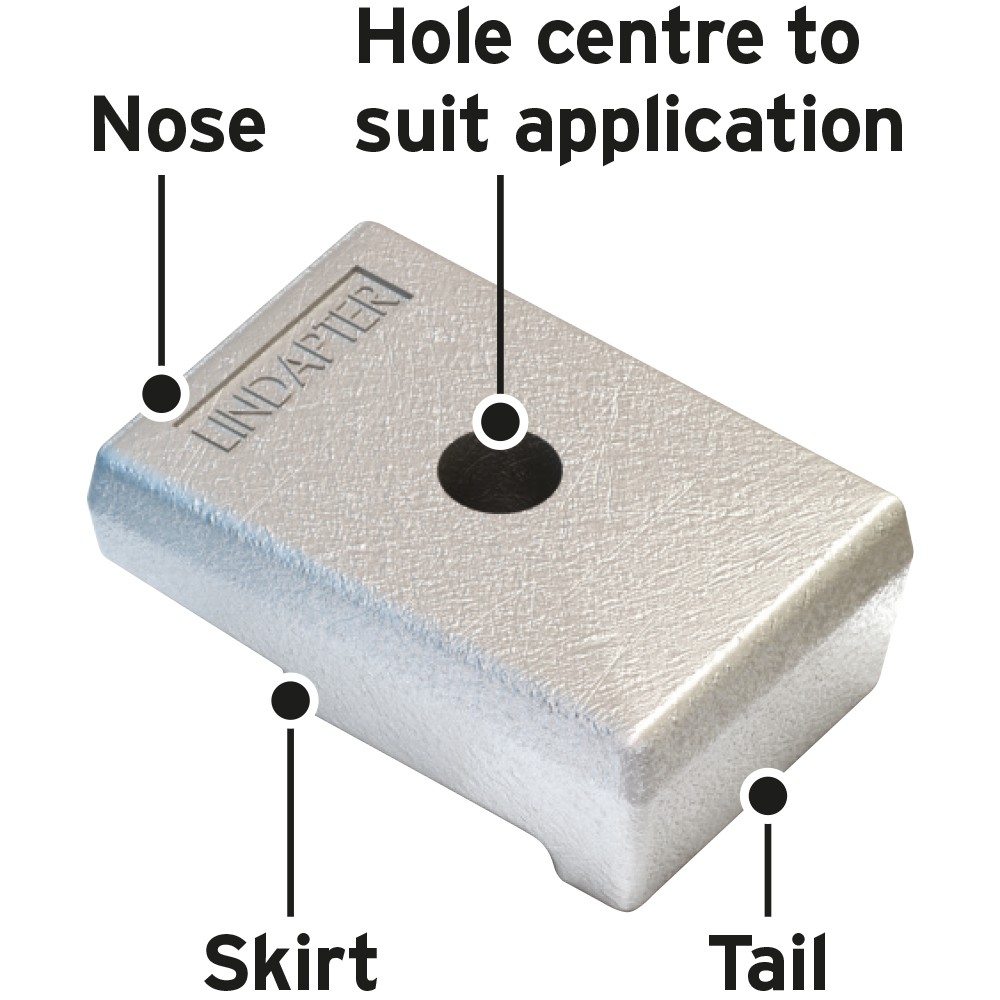

The Type RC girder clamp is used to achieve a fast steelwork fixing connection between two steel beams or other steel sections where the flanges are 10mm thick or greater and where low tensile load capacities are present. The hole centre is custom drilled for each specific application to achieve a perfect installation. Manufactured from forged steel and supplied with corrosion protection as required. Suitable for use on parallel and tapered flanges up to 5°.
Features & Benefits
- Customised hole centre.
- For parallel and tapered flanges up to 5°.
- The tail spans slotted clearance holes.
- For tensile applications only.
- Contact Lindapter to ensure suitability of the component for application.
Approvals
Click on an approval logo to download the certificate or report.
Properties
- Manufactured from forged steel.
Technical Specification
| Safe Working Loads | Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Product Code | Bolt 8.8. Z | Tensile / 1 Bolt (FOS 5:1) | Tightening Torque* | Tail Length V | C | L | H | Width |
| kN | Nm | mm | mm | mm | mm | mm | ||
| RCS12 | M12 | 2.6 | 69 | 10 | 6.5 - 26.5 | 76 | 29 | 50 |
| RCS16 | M16 | 4.0 | 147 | 10 | 9 - 24 | 76 | 29 | 50 |
| RCS20 | M20 | 9.6 | 285 | 10 | 11 - 22 | 76 | 29 | 50 |
| RCS24 | M24 | 12.3 | 491 | 10 | 13 - 20 | 76 | 29 | 50 |
* Torque figures based on bolts / setscews in an unlubricated condition.
