Type HB Hollo-Bolt™ Countersunk Head
Hollo-Bolt Countersunk Head is an expansion bolt that only requires access from one side of the Structural Hollow Section (SHS).
Overview

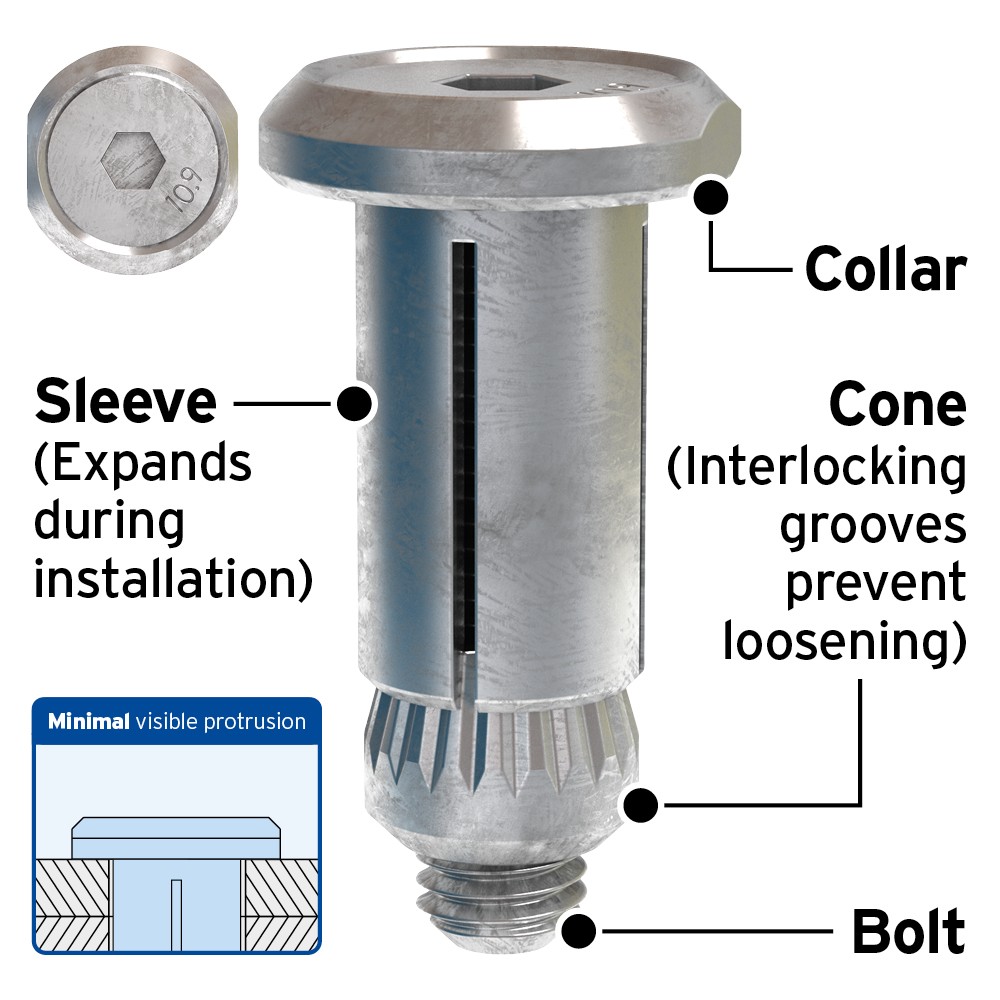

Hollo-Bolt expansion bolts require access to only one side of the Structural Hollow Section (SHS), and offer a faster alternative to welding or through-bolting, enabling contractors to reduce construction time and labour costs. Installation is quickly carried out by inserting into pre-drilled steelwork and tightening with a torque wrench. Also suitable for blind connections where access is available from one side only. The 'Countersunk Head' version also ensures that the fixing protrusion from the steelwork is kept to a minimum whilst still using a plain drilled hole in the supporting section and the outer plate / bracket.
The larger M16 Hollo-Bolts are optimised for high strength structural connections and feature a unique High Clamping Force (HCF) mechanism for superior performance.
Features & Benefits
- Minimal visible head protrusion.
- Fast, cost saving installation from one side.
- For square, rectangular and circular hollow sections.
- High resistance to shear and tension.
- Unique High Clamping Force design (size M16).
- Low temperature tested to -45°C (carbon steel variants).
- Other head types available.
- New Hollo-Bolt plug-in tool available to download within Tekla Warehouse.
Approvals
Click on an approval logo to download the certificate or report.
BIM Tools
Click the logo to download the new Hollo-Bolt plug-in tool available in Tekla Warehouse.
Properties
- Manufactured from mild steel or stainless steel grade 316.
- Available with zinc plated or sheraplex finish.
- Reaction to fire: A1 (Steel)
Durability and corrosion protection:
| Corrosivity Class | Electroplated Steel | Sheraplex | Stainless Steel |
| C1 | More than 50 years | More than 50 years | More than 50 years |
| C2 | More than 20 years | More than 50 years | More than 50 years |
| C3 | More than 10 years | More than 20 years | More than 50 years |
For C4 and C5 corrosion categories contact us.
Technical Specification
| Collar | Safe Working Loads (5:1 Factor of Safety) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Code | Bolt Ø | Height | Length | Clamping Thickness | Outer Ply | Sleeve Outer Ø | Ø | Tightening Torque | Tensile | Single Shear | |
| Z | H | B | W | min t | S | D | A/F | ||||
| mm | mm | mm | mm | mm | mm | mm | Nm | kN | kN | ||
| HBCSK08-1 | M8 | 5 | 45 | 3 - 22 | - | 13.75 | 22 | 19 | 23 | 4.0 | 5.0 |
| HBCSK08-2 | M8 | 5 | 65 | 22 - 41 | - | 13.75 | 22 | 19 | 23 | 4.0 | 5.0 |
| HBCSK08-3 | M8 | 5 | 85 | 41 - 60 | - | 13.75 | 22 | 19 | 23 | 4.0 | 5.0 |
| HBCSK10-1 | M10 | 6 | 44 | 3 - 22 | - | 17.75 | 29 | 24 | 45 | 8.5 | 10.0 |
| HBCSK10-2 | M10 | 6 | 64 | 22 - 41 | - | 17.75 | 29 | 24 | 45 | 8.5 | 10.0 |
| HBCSK10-3 | M10 | 6 | 84 | 41 - 60 | - | 17.75 | 29 | 24 | 45 | 8.5 | 10.0 |
| HBCSK12-1 | M12 | 7 | 48 | 3 - 25 | - | 19.75 | 32 | 30 | 80 | 10.5 | 15.0 |
| HBCSK12-2 | M12 | 7 | 73 | 25 - 47 | - | 19.75 | 32 | 30 | 80 | 10.5 | 15.0 |
| HBCSK12-3 | M12 | 7 | 93 | 47 - 69 | - | 19.75 | 32 | 30 | 80 | 10.5 | 15.0 |
| High Clamping Force | |||||||||||
| HBCSK16-1 | M16 | 8 | 62 | 12 - 29 | 8 | 25.75 | 38 | 36 | 190 | 21.0 | 30.0 |
| HBCSK16-2 | M16 | 8 | 92 | 29 - 50 | 8 | 25.75 | 38 | 36 | 190 | 21.0 | 30.0 |
| HBCSK16-3 | M16 | 8 | 112 | 50 - 71 | 8 | 25.75 | 38 | 36 | 190 | 21.0 | 30.0 |
For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoC No.101
For Characteristic Resistances when designing a connection to Eurocode 3, please refer to DoP No.001
• Hollo-Bolts can be used on a wide variety of steel hollow shape sections. Safe working loads shown are applicable to the Hollo-Bolt only in both tension and shear. Failure of the section could occur at a lower figure and its strength should be checked by a qualified Structural Engineer.
